One-offs / Prototypes / Small batches
One-off &
small-batch
laser cutting.
One custom part or a small run, made in South Yorkshire. Upload your DXF, STEP or STP file, choose metal or acrylic and get an instant price online.
01 / Make the first one
Custom parts
for your project.
Order the quantity you need now. Check the physical part before committing to a larger batch.
Parts cut to your drawing
A mounting plate for a project, a replacement panel, a spacer or a prototype fixture: start with the profile and cut-outs you need. We laser cut the shape from your design.
- One-off
- A single custom part for a specific job
- Prototype
- A first part to check fit and assembly

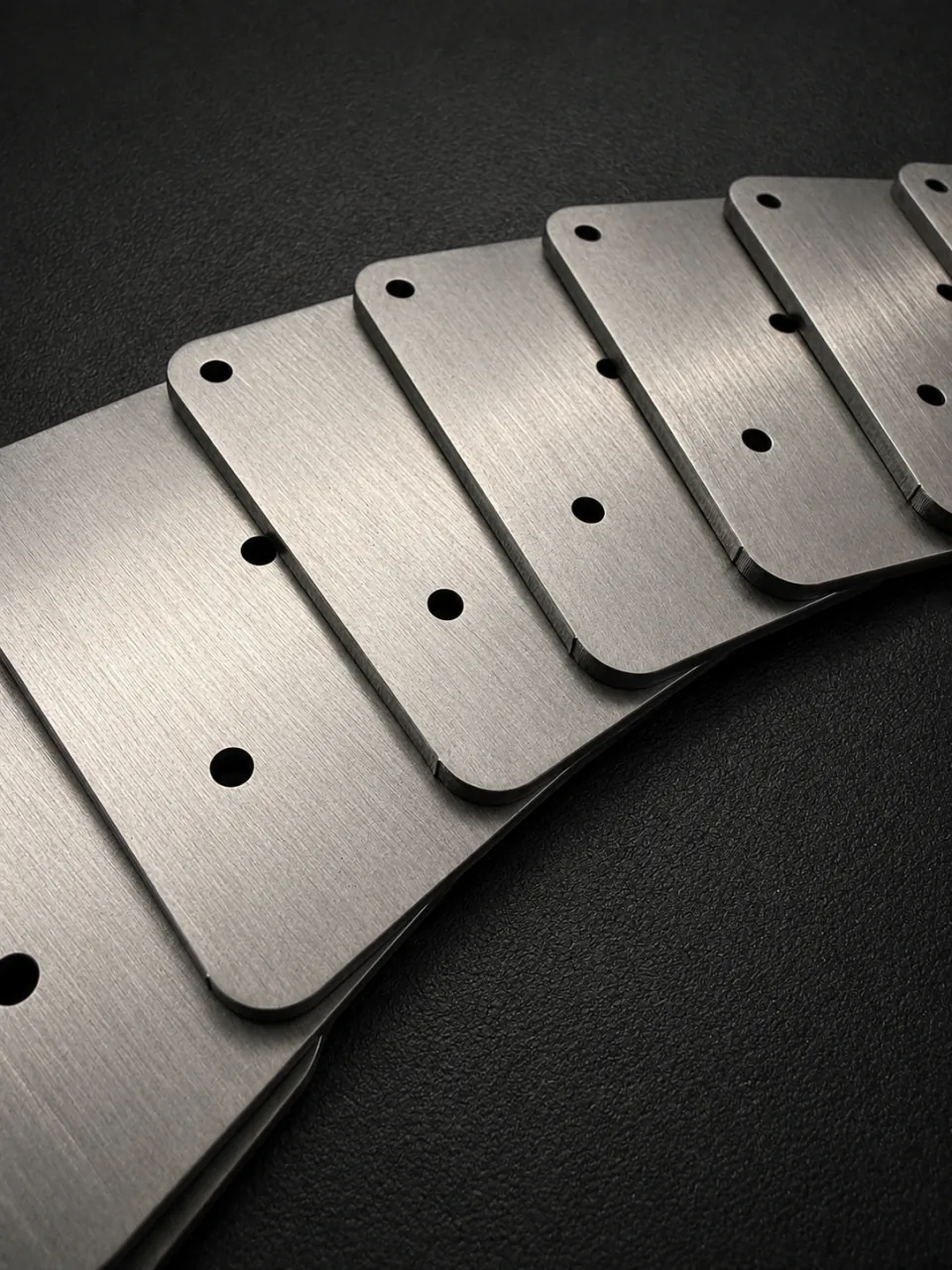

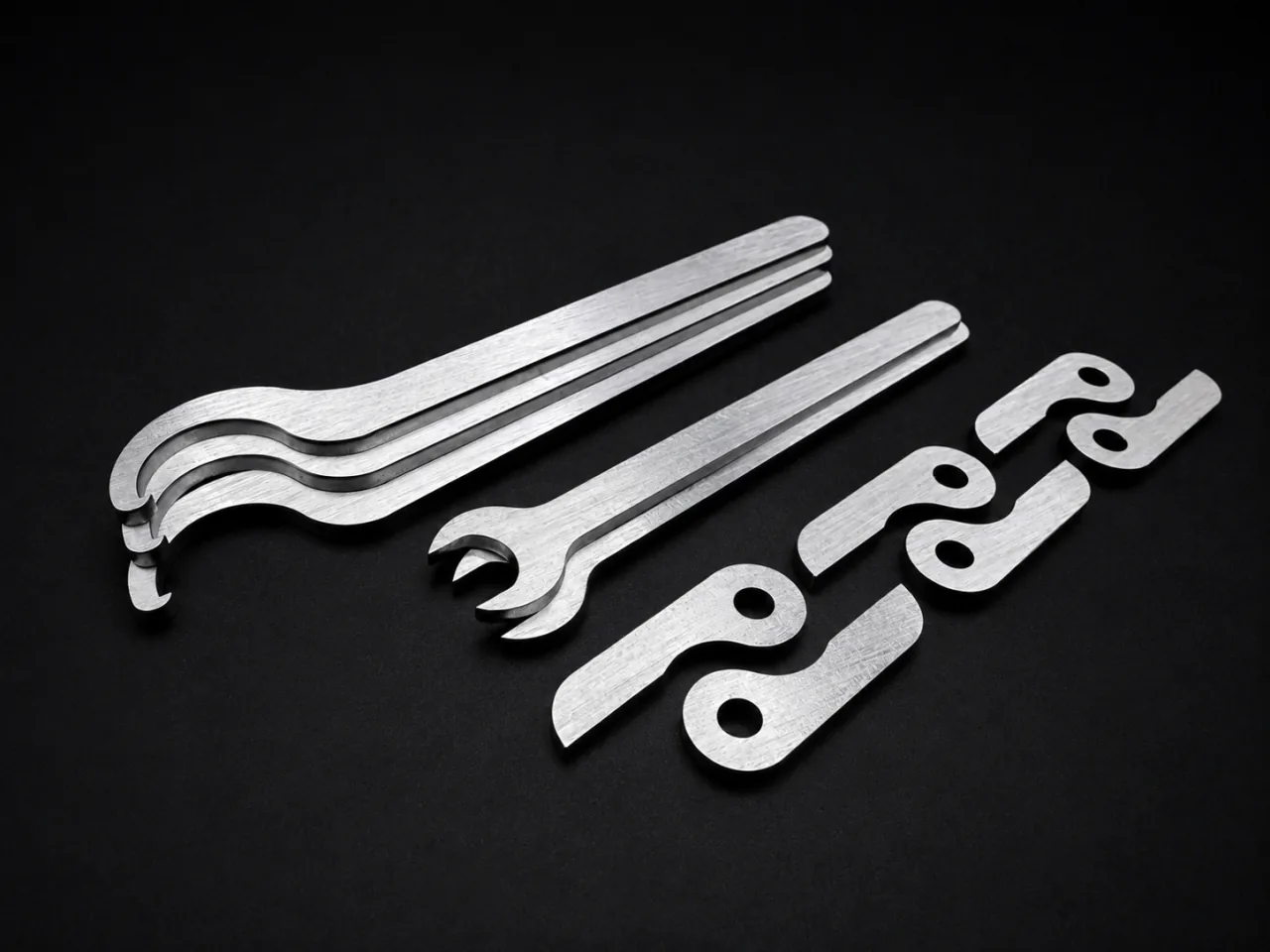

- Small batch
- Several parts from a design you have checked
02 / From idea to upload
Preparing your
DXF drawing
A few checks before uploading help you get the part you intended. Keep the drawing focused on the geometry you want cut.
01 Draw at full size
Export a DXF at 1:1 in millimetres. Reopen it and measure a known dimension to check the scale.
02 Clean the cut paths
Use closed outlines for the profile and holes. Remove dimensions, notes, duplicate lines and unused geometry.
03 Check small features
Compare hole, slot and overall part sizes with the limits for your chosen material and thickness.
04 Review the preview
After uploading, check the displayed shape and dimensions. Resolve drawing warnings before placing your order.
03 / Choose your material and quantity
Material, thickness
and quantity
Use the online quote to compare the available options for your drawing before ordering.
Choose a material for the job.
We offer mild steel, stainless steel, aluminium and acrylic in listed stock thicknesses. Your quote shows current availability. Optional textured powder coating is available on supported metal parts.
Compare materials and thicknesses- Price one part
- Set quantity to one and review the quoted price.
- Compare a batch
- Change the quantity to see how the price changes for your design.
- Check the fit
- For a new design, check your first physical part before ordering more.
Ordering after a prototype
If you revise hole positions, dimensions or thickness after a prototype, upload and quote the revised drawing. Check the file and specification again before ordering the next batch.
Before your first order
One-off ordering
questions.
Can I order just one laser-cut part?
Yes. Upload your DXF, STEP or STP file and set the quantity to one. The minimum order is £20. We are not VAT registered, so we do not charge VAT. You can see the price for your chosen material and thickness before ordering.
Can you quote from a sketch or photograph?
The quote page accepts DXF drawings and suitable sheet-metal STEP/STP models. For JPG, PNG, SVG, PDF or DWG, use Drawing Workshop to prepare and check your cutting drawing. Images need a sharp black shape on white; photographs with perspective or shadows are not suitable. See the File preparation & repairs for examples.
How much does a one-off part cost?
The price depends on your drawing, material, thickness, quantity and selected options. Uploading your actual file gives you a price for the part you want to make.
What finish and tolerance should I expect?
Parts are supplied flat. Metal parts are deburred; acrylic is CO₂ laser cut and does not need deburring. We do not offer bending. Our usual cutting tolerance is ±0.2 mm, but larger parts or complex geometry can vary more. Check critical fits before ordering. Read our quality and tolerances guide.
Can I order more after trying the first part?
Yes. Review saved quotes and past orders in your account, check the specification and current price, and order again. If the design has changed, upload the revised file for a new quote.
What should I do if I need parts by a particular date?
Production is normally 1–2 days when material is in stock, followed by next-day delivery after dispatch. Waiting for stock material can extend production. Check with us before ordering if you have a deadline. See our delivery information for how dispatch and delivery are handled.
Online quotes
Get a quote for your part.
Upload your DXF, STEP or STP file and see your price online.
